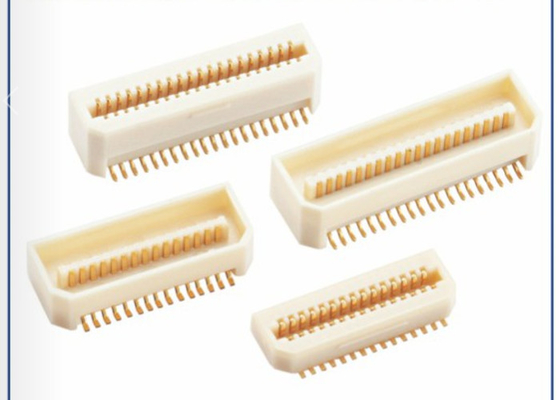

M Type Board To Board 0.8 Pitch Connector SMT Male Type With Post And Cap UL94V-0

M Type Board To Board 0.8 Pitch Connector SMT Male Type With Post And Cap UL94V-0

    • M Type Board To Board 0.8 Pitch Connector SMT Male Type With Post And Cap UL94V-0
    • M Type Board To Board 0.8 Pitch Connector SMT Male Type With Post And Cap UL94V-0
  • M Type Board To Board 0.8 Pitch Connector SMT Male Type With Post And Cap UL94V-0

    Product Details:

    Place of Origin: China
    Brand Name: WCON
    Certification: UL/SGS/ROHS
    Model Number: 3612-PXXX-035G1R01

    Payment & Shipping Terms:

    Minimum Order Quantity: 1000pcs
    Price: negotiation
    Packaging Details: Reel packing
    Delivery Time: 15~25Day
    Payment Terms: T/T
    Supply Ability: 800000pcs
    Contact Now
    Detailed Product Description
    Gender: Male Plasitc: PA9T
    Color: Natural Port: Hong Kong
    Type: SMT Pitch: 0.8mm

    M Type Board to Board 0.8 Pitch SMT male type with post and cap UL94V-0.



    M Type Board To Board 0.8 Pitch Connector SMT Male Type With Post And Cap UL94V-0

    M Type Board To Board 0.8 Pitch Connector SMT Male Type With Post And Cap UL94V-0

    WCON Pcb Pin Male Header Connector Single Row Header 2.00mm 1*22P 180°DIPDrawing:BO TO BO 3612-PXXX-035XXR01.pdf.



    1. Current Rating 0.5AMP
    2. Contact Resistance 30mΩ Max
    3. Withstand Voltage 500V AC/DC
    4. Insulation Resistance 100mΩ Min
    5. Operation Temperature ﹣20℃ to +105℃
    6. Contact Material Phosphor Bronze
    7. Housing Material PA9T UL94V-0
    8. Contact Plating Au Or Sn Over Ni



    Item name: Board To Board connector
    product features: the most powerful transmission capacity in the current connector, the use of a wide range of environmental protection, high temperature resistance, fire resistance, oxidation resistance, electrical conductivity, precision and strong connection
    product material: UL94V-0, PA9T+30%GF, copper alloy material
    applications: power systems, communications networks, financial manufacturing, elevators, industrial automation, medical equipment, office equipment, home appliances, military manufacturing and other industries.
