Product Details:
Payment & Shipping Terms:
|
| Application Field: | Computer Motherboard Connections | Gender: | Female |
|---|---|---|---|
| Pins: | 10~64P | Insulation Resistance: | 1000mΩ Min |
| Operation Temperature: | ﹣40℃ To +105℃ | Contact Material: | Phosphor Bronze |
| Port: | Hong Kong | Color: | Black |
| High Light: | dip socket,20 pin dip socket |
||

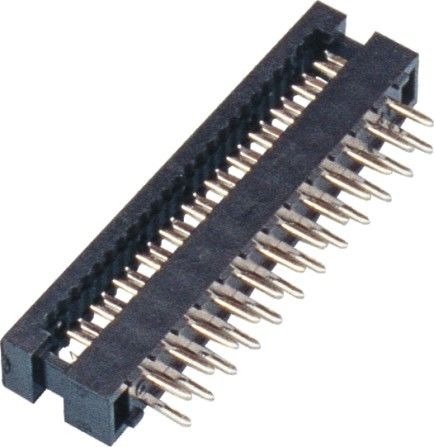

2.0mm Computer Power Connectors 2*12P DIP Plug Connector P PBT Tin plating
Current Rating: 1.0AMP
Contact Resistance :20mΩ Max
Withstand Voltage: 500V AC/DC
Insulation Resistance: 1000mΩ Min
| Operation Temperature | ﹣40℃ to +105℃ |
| Contact Material | Phosphor Bronze |
| Contact Plating | Au Or Sn over Ni |
| Insulator Material | PBT+30%GF UL94V-0 |
| Product Name: DIP connector |
| 1. Product features: high voltage high temperature mechanical properties of applicable environment temperature |
| 2. Product material: material terminal material: Bronze electronic plating: gold plated or tin insulator material: Polyester UL94V-0 plastic PBT |
| 3. Scope of application: cable PCB board VGA/SVGA card or BIOS chip |
