Product Details:
Payment & Shipping Terms:
|
| Rated Current: | 0.75AMP | Contact Resistance: | 30mΩ Max |
|---|---|---|---|
| Withstand Voltage: | 500V AC/DC | Insulation Resistance: | 1000mΩ Min |
| Operation Temperature: | -40℃ To +105℃ | Contact Plating: | Au Over Ni |
| High Light: | male pin header,dual row header connector |
||

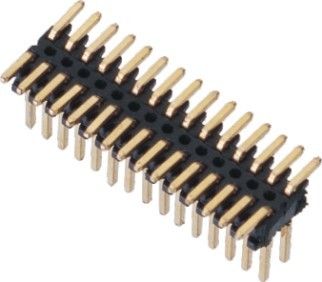

0.8mm 2*15P SMT LCP Black UL94V-0 Brass Gold Flash Pin Header Connector
| 1. Rated Current | 2.0AMP |
| 2. Contact Resistance | 20mΩ Max |
| 3. Withstand Voltage | 500V AC/DC |
| 4. Insulation Resistance | 1000mΩ Min |
| 5. Operation Temperature | ﹣40℃ to +105℃ |
| 6. Contact Material | Brass |
| 7. Contact Plating | Au over Ni |
| 8. Insulator Material |
LCP Black+30％GF UL94V-0 BK |
| Product Name: 0.8mm pin connector | ||
| 1. features: the use of a wide range of environmental protection fireproof anti-oxidation conductive and strong, to be blocked in the circuit between the circuit or isolated, to the bridge function, assume the current or signal transmission task. | ||
| 2. material: it is made of brass wire, phosphorus copper wire, copper clad steel wire, pure copper wire, tin plating nickel surface after the bottom, bottom plated nickel. | ||
| 3. scope of application: pin are widely used in displays, digital camera, MP3, MP4, PDA, computer, computer motherboard, a variety of mobile storage disk, card reader, security products, electricity meter, wireless telephone, mobile phone, interphone, program-controlled switches, VCD, DVD, LCM/LED display module, electronic toys, household appliances etc.. As the most reliable connection plate to plate, wire to board provides. |
Drawing:Pin Header 1614-12XXXXMXXXXX.pdf
