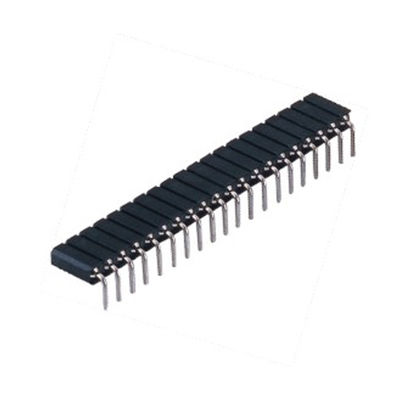

Name: WCON 2.54 mm Machined Female Header PCB Round Header Light Bar Connector H=7.0
Brand: WCON
SKU: 3521-70114SS0100T1
Rating: 5 (177 reviews)

Home Products Round Pin Header

WCON 2.54 mm Machined Female Header PCB Round Header Light Bar Connector H=7.0

Product Details:

Place of Origin:	China
Brand Name:	WCON
Certification:	UL/SGS/ROHS
Model Number:	3521-70114SS0100T1

Payment & Shipping Terms:

Minimum Order Quantity:	1000PCS
Price:	Negotiation
Packaging Details:	15-25 Working Days
Delivery Time:	800000Kpcs
Payment Terms:	T/T

Contact Now

Detailed Product Description

Standard:	PPS Black+30%GF	Contact Clip (4 Finger):	Beryllium Copper (C17200)
Force:	Polished Steel Gauge ∮0.76mm	Product Use:	Connection And Transport
Product Range:	Cable LED IC, Etc.	Recommended Level:	High
Pitch:	2.54mm	Gender:	Female
High Light:	connector 2.54 mm pitch , 1.27 mm female header

2.54 mm Machined Female Header PCB Round Pin HeaderLight Bar Connector

1. Current Rating	3.0AMP
2. Contact Resistance	10mΩ Max
3. Dielectric Strength	Min 1000VRMS
4. Mechanical Life	Min 500 cycles
5. Mating Pin	∅0.70 To ∅0.9mm Or 0.635SQ
6. Forces	Polished Steel Gauge ∅0.76mm
7. Insertion	150g Max/Pin Withdrawal:30g/pin
8. Operation Temperature	-40℃ to +105℃
9.Sleeve	Brass CuZn36Pb3(C36000)
10. Contact Clip(6 Finger)	BeCu(C17200)
11. Insulator Material	PPS+30%GF(UL94V-0)

Product Name: 2.54MM Michined Female Header connector
1.product features: high contact reliability, vibration resistance, small contact impedance.
2.product material: insulation part PPS, PA46 or PA6T plastic insulation part of the fire rating: UL94V-0 contact part: Brass.
3.scope of application: PCB computer communication cable LED integrated circuit IC power car monitor.
