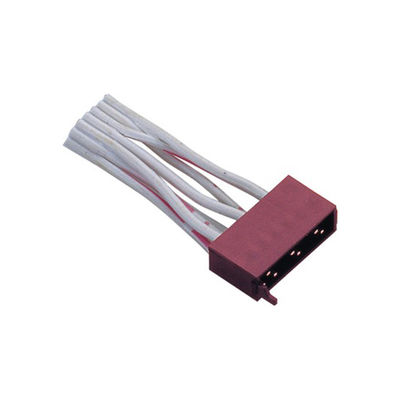

WCON Anti Jump Circuit Board Wire Connectors , Red Head Wire To Board Crimp

WCON Anti Jump Circuit Board Wire Connectors , Red Head Wire To Board Crimp

  • WCON Anti Jump Circuit Board Wire Connectors , Red Head Wire To Board Crimp
  • WCON Anti Jump Circuit Board Wire Connectors , Red Head Wire To Board Crimp
  • WCON Anti Jump Circuit Board Wire Connectors , Red Head Wire To Board Crimp
WCON Anti Jump Circuit Board Wire Connectors , Red Head Wire To Board Crimp
Product Details:
Place of Origin: China
Brand Name: WCON
Certification: UL/SGS/ROHS
Model Number: 3900-HXXR01
Payment & Shipping Terms:
Minimum Order Quantity: 1000pcs
Price: negotiation
Packaging Details: Tray
Delivery Time: 15~25Day
Payment Terms: T/T
Supply Ability: 800000PCS
Contact Now
Detailed Product Description
Rated Current : 1.0AMP Contact Resistance: 20mΩ Max
Operation Temperature: ﹣40℃ To +105℃ Plasitc: PA46
Pitch: 1.27mm Color: Red
High Light:

circuit board wire connectors

,

circuit board connectors

WCON ​1.27mm MRC Connector Crimp housing Wire To Board Red wiring head



Current Rating 1.0AMP
Contactt Resistance 20mΩ Max
Withstand Voltage 500V AC/DC
Insulation Resistance 1000mΩ Min
Operation Temperature ﹣40℃ to +105℃
Contact Material Phosphor Bronze
Contact Plating Sn over Ni
Insulator Material
 		 PA46+30%GF(UL94V-0)



Item name: MRC connector
product features: the use of a wide range of environmental protection, fire resistance, flame retardant, anti jump function
material: insulation material: PBT/PA46/PA6T contact material: copper / Bronze
scope of application: the product is widely used in computer, industrial control board, display, video card, digital camera, DVD, MP3, PDA, UPS, mobile phones, game consoles and other types of line ends and board.





WCON Anti Jump Circuit Board Wire Connectors , Red Head Wire To Board Crimp 0

WCON Anti Jump Circuit Board Wire Connectors , Red Head Wire To Board Crimp 1

WCON Anti Jump Circuit Board Wire Connectors , Red Head Wire To Board Crimp 2


WCON Pcb Pin Male Header Connector Single Row Header 2.00mm 1*22P 180ÃÆ’‚°DIPDrawing:MRC3900-HXXR01.pdf

                               T3900-TPXX02.pdf

                                T3900-TPXX01.pdf

Tag:

circuit board wire connectors,

1.25 mm Pitch Connector,

1.25 mm pitch connector
