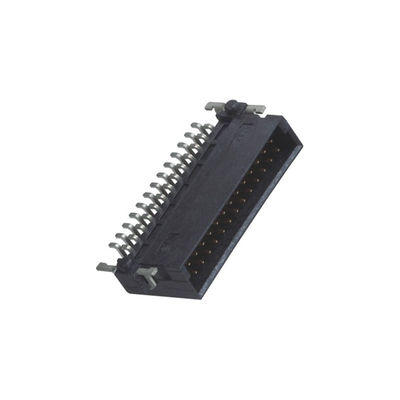

WCON Right Angle SMT Type LCP Black Sn over Ni 1.27mm Male board to board SDC

WCON Right Angle SMT Type LCP Black Sn over Ni 1.27mm Male board to board SDC

  • WCON Right Angle  SMT Type LCP Black  Sn over Ni 1.27mm Male board to board SDC
  • WCON Right Angle  SMT Type LCP Black  Sn over Ni 1.27mm Male board to board SDC
WCON Right Angle  SMT Type LCP Black  Sn over Ni 1.27mm Male board to board SDC
Product Details:
Place of Origin: China
Brand Name: WCON
Certification: UL/SGS/ROHS
Model Number: 3910-PXXX-082ZXXWR1
Payment & Shipping Terms:
Minimum Order Quantity: 1000pcs
Price: Negotiation
Packaging Details: Reel
Delivery Time: 15-25Day
Payment Terms: T/T
Supply Ability: 800000kpcs
Contact Now
Detailed Product Description
Mating: 3910-S Type: Male
Plastic Color: LCP Black Electroplated Material: Gold Flash Tin
Packing: Reel
High Light:

male straight connector

,

right angle board to board connector

Product name:

Right Angle SMT Type LCP Black Sn over Ni 1.27mm Male board to board SDC



Product parameter:

Current Rating: 1.0AMP
Contact Resistance: 25mΩ Max
Insulation Resistance: 1000MΩ Min
Withstand Voltage: 500V AC/Minute
Operation Temperature: ﹣55℃ to +125℃
Contact Material: Phosphor Bronze
Contact plating: Sn over Ni
Insulator Material: LCP


product features:

 the use of a wide range of environmental protection,



applications:

financial manufacturing, elevators, industrial automation,





Product drawing:

WCON Right Angle  SMT Type LCP Black  Sn over Ni 1.27mm Male board to board SDC 0





1.27mm Pcb Female Header / 20 Pin Header Connector 180°DIP PPS 30%GF UL94V-03910-PXXX-082ZXXWR1.pdf
