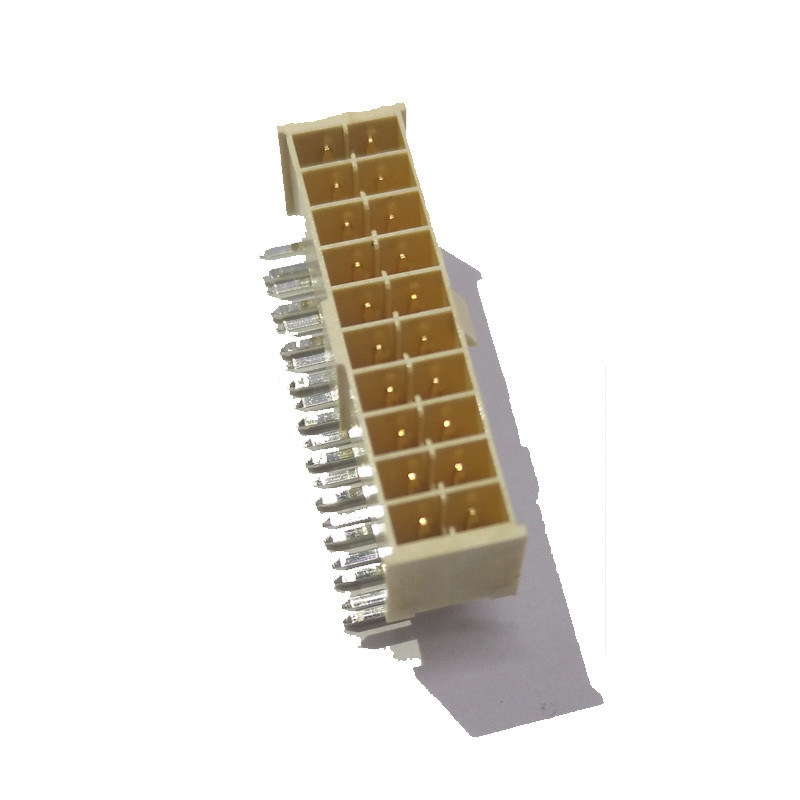

2*10PIN Right Angle Wafer 2.54 Pitch Wire To Board Connector With Latch ROHS

2*10PIN Right Angle Wafer 2.54 Pitch Wire To Board Connector With Latch ROHS

    • 2*10PIN Right Angle Wafer 2.54 Pitch Wire To Board Connector With Latch ROHS
    • 2*10PIN Right Angle Wafer 2.54 Pitch Wire To Board Connector With Latch ROHS
    • 2*10PIN Right Angle Wafer 2.54 Pitch Wire To Board Connector With Latch ROHS
    • 2*10PIN Right Angle Wafer 2.54 Pitch Wire To Board Connector With Latch ROHS
  • 2*10PIN Right Angle Wafer 2.54 Pitch Wire To Board Connector With Latch ROHS

    Product Details:

    Place of Origin: China
    Brand Name: WCON
    Certification: UL/SGS/ROHS
    Model Number: WF2549-2WRXXS3T01

    Payment & Shipping Terms:

    Minimum Order Quantity: 1000pcs
    Price: netotiation
    Packaging Details: bag packing
    Delivery Time: 15~25Day
    Payment Terms: T/T
    Supply Ability: 800000pcs
    Contact Now
    Detailed Product Description
    Pitch: 2.54mm Type: Right Angle
    Palsitc: LCP Color: Black
    Terminal: Brass Port: Hong Kong

    2*10PIN Right angle wafer 2.54 pitch wire to board connector with latch ROHS.



    Item name: Wafer connector
    product features: it makes the design and production process more convenient, more flexible, reduce production and maintenance costs, easy maintenance, easy to upgrade, improve the flexibility of the design
    product material: (UL94V-0) PA9T, PA6T, PA46, PA66, etc.
    scope of application: used in computer and peripheral equipment, communication products, test instruments, consumer electronics products, automotive industry, medical electronic products, the production of military and aerospace industry in which the device connecting the two active devices, current or signal transmission.



    Current Rating 3.0AMP
    Contactt Resistance 20mΩ Max
    Withstand Voltage 1000V AC minute
    Insulation Resistance 1000mΩ Min
    Operation Temperature ﹣55℃ to +105℃
    Contact Material Brass
    Contact Plating Sn over Ni
    Insulator Material Polyester (UL94V-0)
    Standard LCP



    WCON Pcb Pin Male Header Connector Single Row Header 2.00mm 1*22P 180°DIPDrawnig:wafer WF2549-2WRXXX01.pdf



    2*10PIN Right Angle Wafer 2.54 Pitch Wire To Board Connector With Latch ROHS



    Since its foundation, the company sticks to the
    principle of specialization and tries its best to
    Supply customers with products of high quality at competitive prices,
    regarding .From the development and design of metal and plastic molds,
    molds making, precision high-speed punch molding, precise plastic injection mol
    ding and then automatic assembly.
    The company has a strong design and development team ,access to more than 38
    technical patents and 6 invention patents.
    Dongguan factory laboratory have various testing equipment more than 30 sets, that is
    UL-authorized witness test laboratory, with the UL authorize number:113185001. At present,
    Our laboratory is applying the for national test laboratory accreditation.
